Managing a Large Number of Recipes in the Robotiq Palletizing Solution

Methods to simplify recipe handling when the drop-down list becomes unmanageable

Context :

Managing a large number of recipes requires the use of the drop-down menu in the Robotiq Palletizer node. However, this menu does not support sorting or searching, which can make recipe selection time-consuming or error-prone.

Here are two practical methods to make recipe management easier and more efficient.

Option 1: Recommended : Split Recipes Across Multiple Programs

To simplify navigation, you can split your recipe setup into several robot programs. Each program can then contain a shorter, more manageable recipe list in its drop-down menu.

  • Easy to implement and maintain

  • Reduces clutter in each program

  • Recommended when operator input is required for recipe selection

Option 2: Automate Recipe Selection via Script and PLC

For automated workflows, a script-based workaround allows the robot to select the recipe based on external input, such as a PLC signal sent through Modbus.

This approach uses a legacy script that is not officially supported by Robotiq and must be tested thoroughly before deployment.

Runtime Behavior

  • At startup with an empty pallet: recipe selection may change automatically based on the Modbus signal.

  • At startup with boxes on the pallet: the pallet viewer’s recipe takes priority (ideal for crash recovery).

  • After a pallet completes: the script re-checks Modbus inputs and updates the recipe accordingly.



Script Functionality

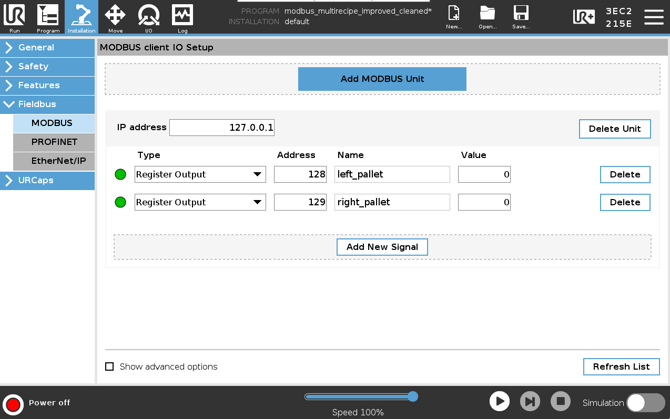

In this workaround, the left_recipe and right_recipe variables are linked to Modbus register statuses. In the provided example, output registers and the robot’s local address (127.0.0.1) are used for testing purposes.

image-Jan-19-2026-04-29-09-0172-PM

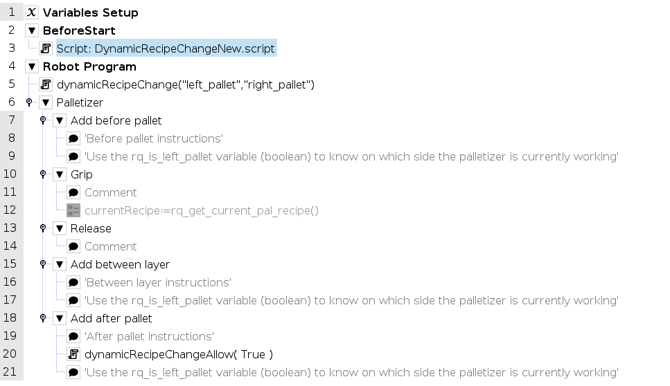

Values from these registers are fed to the dynamicRecipeChange() script function :

image-Jan-19-2026-04-29-08-7036-PM



The function dynamicRecipeChangeAllow(True) must be placed in the “Add after pallet” section of the palletizer node.

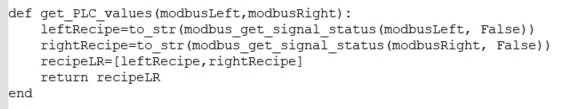

The DynamicRecipeChangeNew script file also contains the get_PLC_values() function:

image-Jan-19-2026-04-29-08-4327-PM

Since Modbus limits values to numbers, the PLC input can be formatted using str_cat() to build a recipe name by adding letters.

Alternatively, if statements can be used to associate a numerical value with a specific recipe name.

Script Download

The script is available here:


Download DynamicRecipeChange Script

Conclusion

To manage a large number of recipes efficiently, you can either divide them across multiple programs or automate recipe selection using a PLC and custom script. Choose the method that best matches your operational needs and technical resources.

Need help? Contact us at support@robotiq.com

Updated: January 2026
