How to Change the ID of a Robotiq Gripper

Context

When using multiple Robotiq grippers on the same Modbus RTU network, each device must have a unique ID. This article explains how to change a gripper’s ID using the Robotiq User Interface (RUI), ensuring proper communication and avoiding conflicts.

Before You Start

Make sure you have the following:

• A Robotiq gripper

• A USB-to-RS485 converter and compatible wiring

• The Robotiq User Interface (RUI) software installed on your PC (Download the Robotiq User Interface)

• A Windows PC

• Power supply for the gripper

Steps to Change the ID via RUI

1. • Connect the gripper to the 10 m cable, then to the RS485 to USB converter.

   • Plug the converter into your computer.

   • Power the gripper via robot or an external 24V 1A source.

   • In the RUI, select the gripper model you're testing.



   • Once your device is powered and connected:

     • Click Auto Connect in the RUI.

     • The software will scan for any connected unit and establish communication automatically.

   • If you have some problem of connection, please refer to this article : How to connect your unit to the Robotiq User Interface (RUI)?

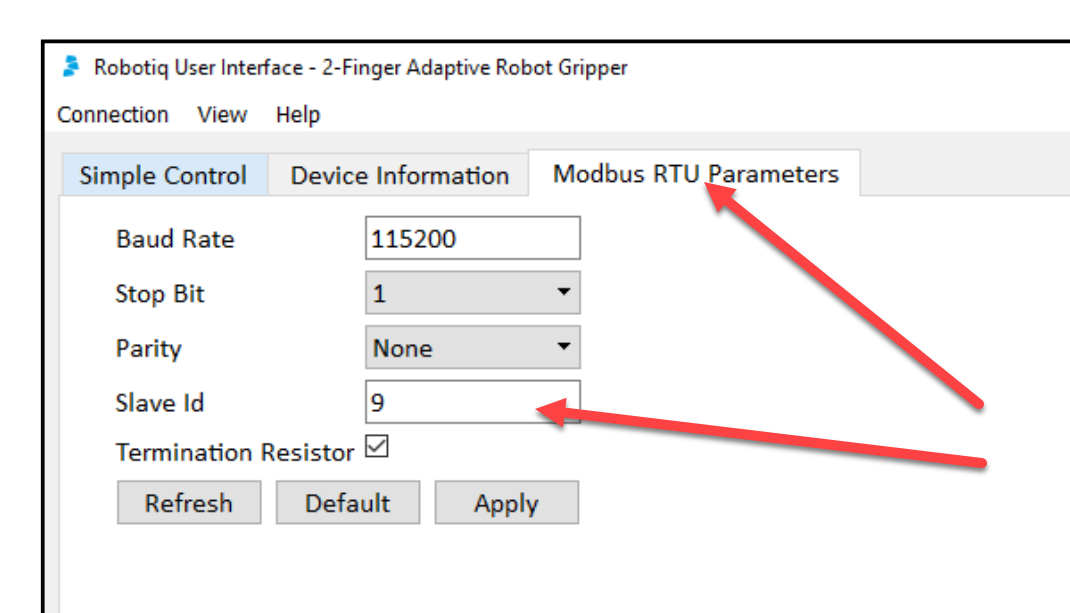

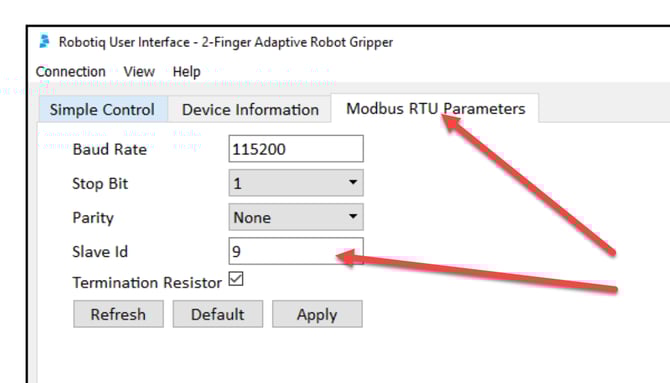

• Navigate to the “MODBUS RTU Parameters” tab

• Find the section labeled Slave ID

• Enter the new ID (must be between 01 and 10)

• Click Apply

Conclusion

Changing the ID of a Robotiq gripper ensures proper multi-device communication on RS-485 networks.
