How to Control PowerPick with Other Robot Brands?
Use PowerPick with non-UR robots through digital I/O control and mechanical adapters
Context
While Robotiq’s PowerPick vacuum gripper is often used with Universal Robots (UR), it is fully compatible with other robot brands, thanks to its simple electrical interface and standard mechanical flange.
This article explains how to control PowerPick with non-UR robots, including wiring, mounting, and operation logic.
What is PowerPick?

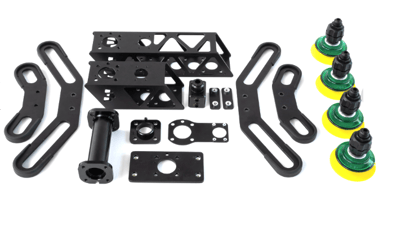

PowerPick is a robust industrial vacuum gripper that uses internal solenoid valves to activate suction.
It is available in three models:
Model | SKU | Description |
---|---|---|
PowerPick 10 | VAC-POWERPICK-KIT | Single-cup, low flow |
PowerPick 20 | VAC-POWERPICK20-KIT | Medium-size, general purpose |
PowerPick 30 | VAC-POWERPICK30-KIT | High flow, larger surfaces |
All models operate at 24V DC and are actuated via digital I/O signals.
Electrical Control Overview

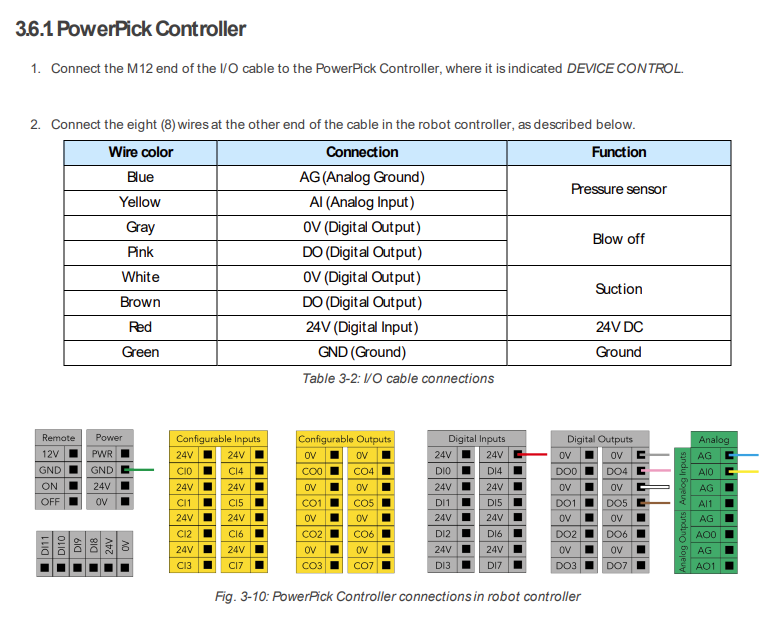

Solenoid Wiring
Each PowerPick has two internal solenoid valves:
-
Gripper ON (suction active)
-
Gripper OFF (vent or blow-off)
You must connect each solenoid to a 24V digital output from your robot or PLC. PowerPick includes flying leads or a connector depending on the model.
Control Logic Example
You can control PowerPick using simple HIGH/LOW digital output signals.
You can refer to the documentation available on our website support.
Mechanical Mounting
PowerPick uses the ISO 9409‑1‑50‑4‑M6 flange standard (⌀50 mm pattern with M6 bolts), common on many collaborative and industrial robots.
Conclusion
PowerPick is compatible with many robot brands outside the UR ecosystem. It requires only two 24V digital outputs and a mechanical flange or adapter. With proper wiring and mounting, you can use PowerPick for reliable vacuum gripping in non-UR environments.
